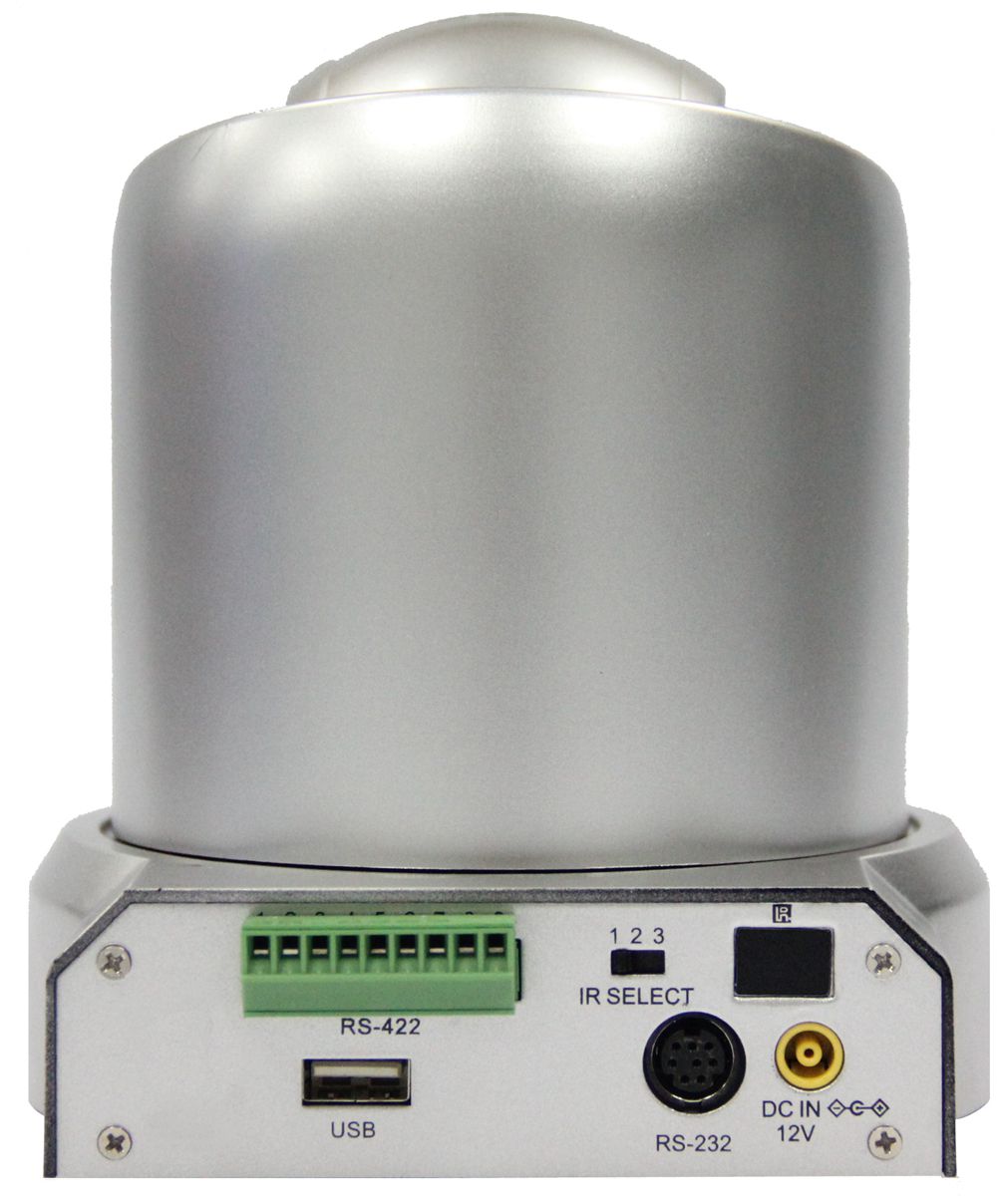

DANNOVO USB 1080P 720P HD PTZ Video Conferencing Room Camera 10x Zoom,Support 255 Preset Postions and Remote Control(DN-HDC13B2)
Main Features
DANNOVO USB 1080P 720P HD PTZ Video Conferencing Room Camera 10x Zoom,Support 255 Preset Postions and Remote Control(DN-HDC13B2):
USB 1080P 720P HD PTZ Video Conferenceing Room Camera Features:
> HD 1/2.8 CMOS Sensor, can Reach 2.7 Mega Pixel;
> 10x Optical Zoom;
> Supports USB Video Output: 1080P and 720P;
> Plug & Play, No need extra Video Capture Card;
> Controlling Camera PTZ through USB directly;USB Cable Offers Both Video Signal and Control Signal, more Convenient for Users to Control the Camera on PC Directly, No need to connect by RS232;
> Pan/Tilt: H: 0~355o,V: 120o;
> Max P/T Speed(P: 80°/ S T:60°/s);
> Wide-Angle: 65 °;
> Supports Images Flip Function;
> RS-232C, RS-422/485 Control(VISCA and PELCO-P/D);
> Support IR wireless remote control P/T/Z;
> 9 preset positions by remote commander, 255 preset positions by PC or keyboard controller, memory auto store when power off;
> VISCA and Pelco P/D protocol can be selected by code switch;
> Enter in and out menu by remote commander directly;
> Multi function Remote control;
> Mini Size: 135x130x140mm.
 |
 |
 |
|
 |
|||
USB 1080P 720P HD PTZ Video Conferencing Room Camera Model NO. | DN-HDC13B2 |
| Image Sensor | HD 1/2.8 Exmor CMOS |
| Effective Pixels | Approximately 2.7 Mega pixels(16:9) |
| Signal System(HD) | 1080P and 720P |
| HD Video Output | USB |
| Horizontal Viewing Angle | 65° |
| Focus system | Auto/Manual |
| Lens | 10x Optical Zoom, f=4.7mm(wide-angle)~47.0mm(far-end),F1.8~F3.0 |
| Minimum Illumination | 0.1Lux |
| Exposure Control | Auto/Manual/Priority AE/Exposure Compensation/ Bright |
| Shutter Speed | 1/30 ~ 1/10,000s |
| Gain | Auto/Manual |
| White Balance | Auto/ Indoor/Outdoor/One push Auto/Manual |
| S/N Ratio | ≥ 50dB |
| Pan/Tilt | Pan: +/- 355° (max. speed: 80°/s) Tilt: 120° (max. speed: 60°/s) |
| Preset Position | 9 presets by Remote Control,(255preset position by keyboard control) |
| Camera Control Interface/Protocol | RS-232C,RS-422/485 (SONY VISCA,PELCO-P/D) |
| Power | 10.8V～13.0V |
| Operating Temperature | 0℃～40℃ |
| Storage Temperature | -20℃～+60℃ |
| Consumption | 30W |
| Dimensions | (L)135×(W)130×(H)140mm |
| Weight | 768g |
