DANNOVO IP Audio Video Conferencing UVC PTZ Camera 12x Zoom, Support USB3.0, IP RJ45,HDMI and CVBS port, H.265&H.264(DN-HDC061B3)
Main Features
DANNOVO IP Audio Video Conferencing UVC PTZ Camera 12x Zoom, Support USB3.0, IP RJ45,HDMI and CVBS port, H.265&H.264(DN-HDC061B3):
Main Application:
Widely used in Broadcasting, Remote-monitoring, Video Conferencing, Distance Learning, House of Worship, Airport, Hotel, Police, School, Museum, Church, Accident, Court, Chain Store, Transportation.
DANNOVO IP Audio Video Conferencing UVC PTZ Camera 12x Zoom Features:
> H.264 & H.265 Encoding Supported IP Network Video Conference camera;
> Support USB3.0, IP RJ45, HDMI HD with CVBS SD Output;
> Support Audio Function;
> 12x Optical Zoom X 32x Digital Zoom
> Field of View: 72.5° Wide-angle Lens;
> Network Features: Support ONVIF Protocol, Support IP Address Login, VLC Play and URL Play, Support Audio Function;
> Video Format:HD: 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25,
SD: NTSC, PAL;
> Low Lux: High Performance in Low illumination Situations;
> Low Light: High SNR of CMOS Sensor Combined with 2D and 3D Noise Reduction Algorithm, Effectively Reduce the Noise;
> Wide area, quiet, fast Pan/Tilt , shooting;
> New step motor with peace and fast operation,can move to appoint angle quickly and have a wide area shooting;
> Pan/Tilt degree:H:0~340o,V:120o;
> Pan/Tilt Speed:Pan: 1.7° ~ 100°/s, Tilt: 1.7° ~ 69.9°/s;
> PTZ Controlling Protocol: PELCO-P/D, VISCA;
> Camera Control Interface: RS-232C, RS-422/485;
> New wide-angle lens with a wide Angle image capture, the best choice of small or medium meeting room;
> 9 preset positions by remote commander, 255 preset positions by PC or keyboard controller, memory auto store when power off;
> Enter in and out menu by remote commander directly;
> Multi function Remote control.
 |
 |
 |
|
 |
|||
| IP Audio Video Conferencing UVC PTZ Camera 12x Zoom Model No.:DN-HDC061B3 | |
| Video System | HD: 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50 SD: NTSC, PAL |
| Sensor | 1/2.7, CMOS, Effective Pixel: 2.07M |
| Scanning Mode | Progressive |
| Lens | 12x, f=3.5mm ~ 42.3mm, F1.8 ~ F2.8 |
| Digital Zoom | 32x |
| Minimal Illumination | 0.05 Lux @ (F1.8, AGC ON) |
| Shutter | 1/25s ~ 1/10000s |
| White Balance | Auto, Indoor, Outdoor, One Push, Manual |
| Backlight Compensation | Support |
| Digital Noise Reduction | 2D&3D Digital Noise Reduction |
| Video S/N | ≥55dB |
| Horizontal Angle of View | 72.5° ~6.9° |
| Vertical Angle of View | 44.8° ~ 3.9° |
| Horizontal Rotation Range | ±170° |
| Vertical Rotation Range | -30° ~ +90° |
| Pan Speed Range | 1.7° ~ 100°/s |
| Tilt Speed Range | 1.7° ~ 69.9°/s |
| H & V flip | Support |
| Number of Preset | 255 |
| Preset Accuracy | 0.1° |
| USB Featured | |
| Operate System | Windows XP, Windows Vista, Windows 7, Windows 8, Mac OS X, Linux |
| Color System | YUV 4:2:2 |
| Video Format | USB3.0 : 1080p/60, 1080p/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25USB2.0 : USB2.0:960x540p/30, 960x540p/25, 640x360p/60, 640x360p/50 |
| USB Video Communication Protocol | UVC 1.0 |
| UVC PTZ | Support |
| IPC Video Features | |
| Video coding standard | H.265/H.264 |
| Video Stream | Main stream, Sub stream |
| Main stream resolution | 1920x1080, 1280x720,1024x576 |
| Sub stream resolution | 720x576, 720x480, 320x240 |
| Bit Rate | 128K,256K,384K,512K,768K,1024K,1536K,2048K,3072K,4096K,5120K,6144K,8192K |
| Bit Rate Type | Variable rate, Fixed rate |
| Maximum Frame | PAL: 1-25, NTSC: 1-30. |
| Audio encode standard | AAC |
| Audio stream rate | 96K, 128K, 256K |
| Support protocols | TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, etc. |

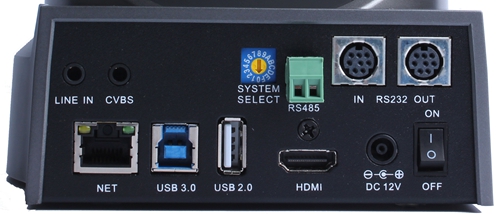

| Input/output Interface | |
| HD Output | 1xHDMI: Version 1.3 |
| SD Output | 1xCVBS: RCA jack, 1Vp-p, 75Ω |
| Network interface | 1xRJ45: 10M/100M Adaptive Ethernet ports |
| Audio Input | 1-ch 3.5mm audio interface, Line In |
| USB | 1xUSB3.0: Type B female jack |
| Communication interface | 1xRS-232 IN: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P |
| 1xRS-232 OUT: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA network use only | |
| 1xRS-485: 2pin pluggable connectors, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P | |
| Power jack | JEITA type (DC IN 12V) |
| Generic Specification | |
| Input Voltage | DC 12V |
| Current Consumption | 1.0A (Max) |
| Operating Temperature | -10°C ~ 40°C (14°F ~ 104°F) |
| Storage Temperature | -40°C ~ 60°C (-40°F ~ 140°F) |
| Power Consumption | 12W (Max) |
| Dimensions | 169mm x 142mm x 164mm |
| Weight | 1.35Kg (3.0lb) |
