Product Name:
DANNOVO MiNi USB Video Conference Room Camera PTZ Samsung 10x10 Zoom Built in Video Capture Card,360 Degree Rotation With Remote Control (DN-C06B)
Main Features
DANNOVO MiNi USB Video Conference Room Camera PTZ Samsung 10x10 Zoom Built in Video Capture Card,360 Degree Rotation With Remote Control (DN-C06B):
DANNOVO MiNi USB PTZ Video Conference Room Camera Feature:
>1/4 Sony CCD,520TVLine;
>PTZ USB Video Conference Camera;
>Built-in Video Capture Card;

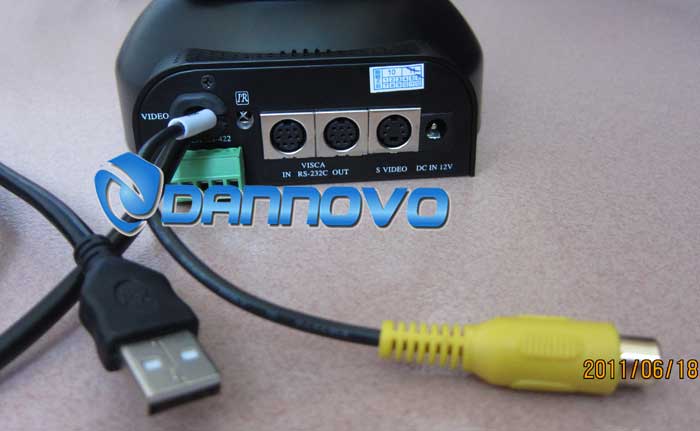

>USB Interface: Connect to PC Directly;
>Pan/Tilt:H: 360o, V: 240o;
>P/T Speed(P: 280°/ S T:100°/s);
>China,Samsung Module Optional(Samsung Module Supports Images Automatic Flip Function);
>Support IR wireless remote control P/T/Z.
There are FOUR modules for choice,below are the differences between them:
Samsung10x Module:10x Optical X 10x Digital Zoom;
China10x Module:10x Optical Zoom,500TVLine;
China10x Module:10x Optical Zoom,650TVLine;
Samsung12x Module:12x Optical X 16x Digital Zoom.
| Module Options | Differences Between Different Modules |
| China10x Module | 1.500TVLine,f=3.9-39 mm,F1.8-F2.9; 2.10x Optical Zoom; 3.AV composite video Output |
| China10x Module | 1.650TVLine,f=3.9-39 mm,F1.8-F2.9; 2.10x Optical Zoom; 3.AV composite video Output |
| Samsung10x Module | 1.520TVLine,f=3.8 to 38.00 mm, F1.8; 2.10x Optical X 10x Digital Zoom; 3.AV composite video Output; 4.Images automatic flip function |
| Samsung12x Module | 1.560TVLine,f=3.94-46.05mm,F1.67-1.88; 2.12x Optical X 16x Digital Zoom; 3.AV composite video Output; 4.Images automatic flip function |
 |
 |
 |
|
 |
|||
MiNi USB Video Conference Room Camera Model No. |
DN-C06B | |
| Image | CCD | 1/4 SONY CCD |
| Mininum Scene Illumination | 1.0 Lux | |
| Sensor | White Balance | AUTO/Manual |
| Gain Control | Auto | |
| Back-light Compensation | On/Off | |
| Electronic shutter | 1/50-1/10,000s | |
| Horizontal resolution | 520 TVLine | |
| S/N Ratio | > 50dB | |
| Lens | Focus | AUTO |
| Iris | AUTO/Manual | |
| Zoom | Samsung10x Module:10x Optical X 10x Digital Zoom | |
| f=3.8-38mm,F1.8 | ||
| Video Output | VIDEO:VBS:1.0Vpp at75ohm; | |
| Control Decoder | Built-in | |
| Communication | EIA/RS-422 | |
| EIA/RS-232(Bidirectional) | ||
| PTZ Control Protocol | Pelco-P/D,VISCA | |
| Baud Rate | 4800/9600 bps | |
| Patrol tours | 4 | |
| Pattern tours | 4 | |
| Preset Position | 64(Using by Keyboard Controller) | |
| Privacy Mask Zone | 4 | |
| Power On Active | Auto pan scan or Patrol(Programmable) | |
| Speed Matching Function | Support | |
| OSD Menu | Support | |
| Image Auto Flip | Support | |
| Pan Speed | 0-280 degrees/s | |
| Tilt Speed | 0-100 degrees/s | |
| Pan rotation angle | 360 degrees continuously | |
| Tilt rotation angle | 240 degrees | |
| Auto Pan Scan | Support | |
| Boundary Scan | 0-359 degrees(programmable) | |
| Remoter Control | IR Wireless remote control P/T/Z | |
| Power | DC 12V -10%;1.2A | |
| Temperature and humidity | 0o-60o C,0-95% RH(non-condensation) | |
